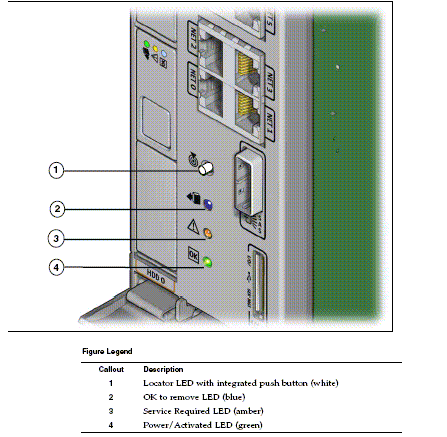

Sun Fire USBRDT 5240 Uniboard LEDs | ||||||||||||||||||||||
| LED Name / Color | Status | Description |
|---|---|---|
| Locator LED | ||
|
On
|
Locates the board. | |
| OK to Remove LED / Blue |
On
|
Board can be removed. |
|
Off
|
Board cannot be removed. | |
| Service Required LED / Yellow |
On
|
Internal Fault. |
|
Off
|
No Internal Fault. | |
| Power/Activated LED / Green |
On
|
Device is activated. |
|
Off
|
Device is deactivated (Not ready to be removed). |
| | | |
|
