Power

2.86 Amps @ +5Vdc

14.30 Watts

Notes

1. The minimum operating system is Solaris 1.1 (SunOS 4.1.3).
2. Only one 501-2219 SM40 is supported.
3. Set the SS10 clock speed to 80MHz.

Reference

1. SuperSPARC Module Installation Guide, 801-2035.

Notes

1. The minimum operating system is Solaris 1.1 (SunOS 4.1.3).
2. Only one 501-2219 SM40 is supported.
3. Set the SS10 clock speed to 80MHz.

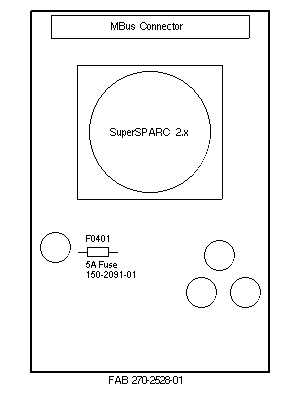

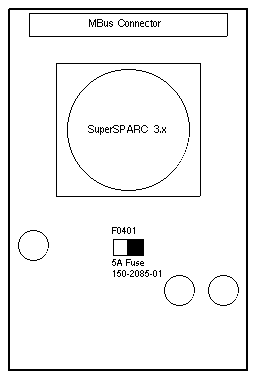

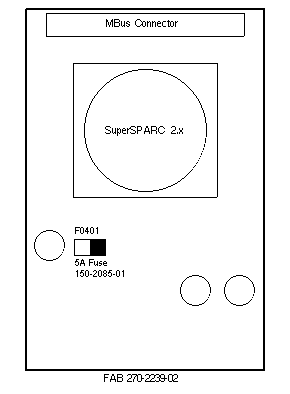

4. The 5A Fuse is not field replaceable.

Reference

1. SuperSPARC Module Installation Guide, 801-2035.

Power

2.86 Amps @ +5Vdc

14.30 Watts

Notes

1. The minimum operating system is Solaris 1.1 (SunOS 4.1.3).
2. If two modules are installed, the minimum OS is Solaris 2.2.
3. The SS10 requires Boot PROM 2.12 if two SM40s are installed.
4. The 501-2358 is not recommended for use in MP mode.
5. Set the SS10 clock speed to 80MHz.

Reference

1. SuperSPARC Module Installation Guide, 801-2035.

SM40 SuperSPARC Module

SS10 / SS10SX

501-2570
40MHz

Additional Information & Views

Notes

1. Solaris 1.1.1 Version A is not supported.
2. If two modules are installed, the minimum OS is Solaris 2.2.
3. The SS10 requires Boot PROM 2.12 if two SM40s are installed.
4. Mixing different module types is not supported.
5. Set the SS10 clock speed to 80MHz.

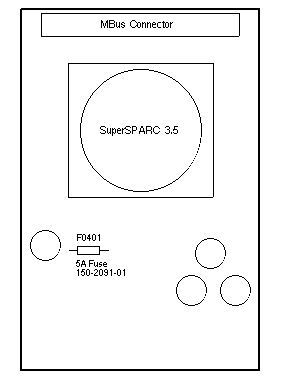

6. The 5A Fuse is not field replaceable.

Reference

1. SuperSPARC Module Installation Guide, 801-2035.
