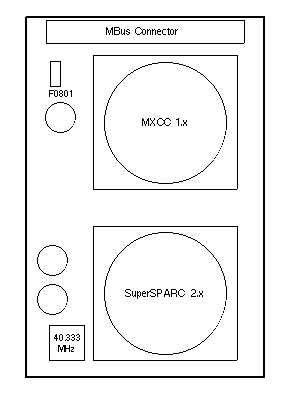

SM41 SuperSPARC Module

SS10 / SS630 / SS670 / SS690
Option 1161

501-2258
40MHz

Power

4.28 Amps @ +5Vdc
21.40 Watts

Notes

  1. The minimum operating system is Solaris 1.1 (SunOS 4.1.3).
  2. If two modules are installed, the minimum OS is Solaris 2.1.
  3. Mixing different module types is not supported.
  4. Set the SS10 clock speed to 80MHz.
  5. Surface mounted Fuse F0801 is not field replaceable.

Reference

  1. SuperSPARC Module Installation Guide, 801-2035.
