5-Slot SCSI Adapters

Sun-4/330 / SS630MP


501-1416

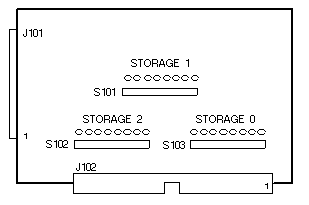

SCSI-OUT Terminator Board

501-1432
SCSI-IN Terminator Board

Notes

  1. The SCSI Out Terminator Board uses three 221/331 terminators, 120-1608-01.
  2. Move terminators to the Storage position to connect an external peripheral subsystem.
  3. There are no components on the SCSI-IN Terminator board, 501-1432.
